Professional Forged Shafts Manufacturing Services
Leading provider of custom forged steel shafts with precision machining, advanced heat treatment, and superior quality control for industrial applications worldwide.
Comprehensive Forged Shaft Solutions
We specialize in manufacturing high-quality forged shafts through advanced forging techniques, precision machining, and rigorous heat treatment processes to meet the most demanding industrial requirements.

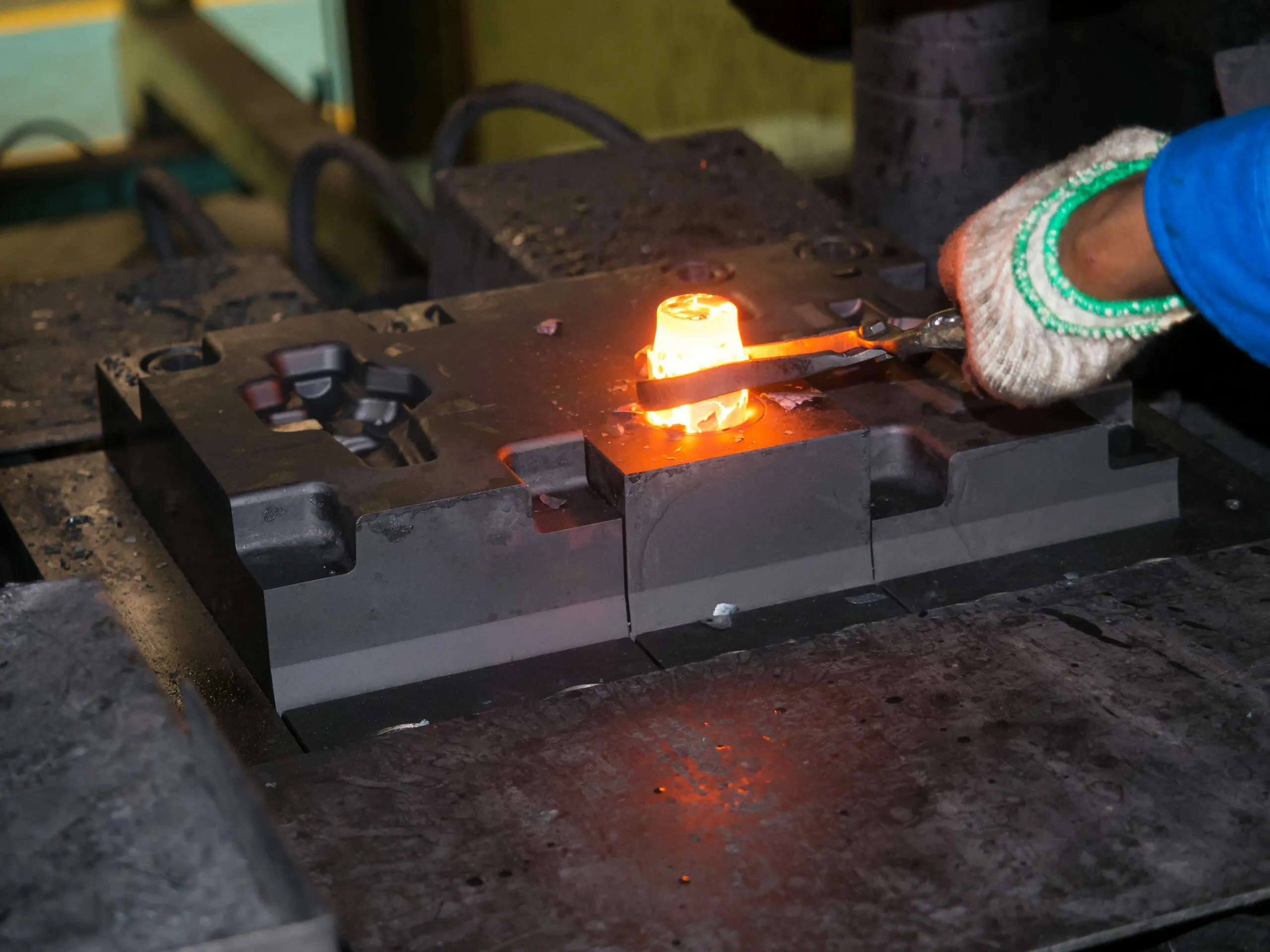

Custom Steel Forging
Advanced open-die and closed-die forging processes for superior strength and grain structure. Capability for shafts up to 18" diameter and 120" length.
- • Open-die forging for large components
- • Closed-die forging for precision parts
- • Step shaft and eccentric shaft forging
- • Material utilization optimization

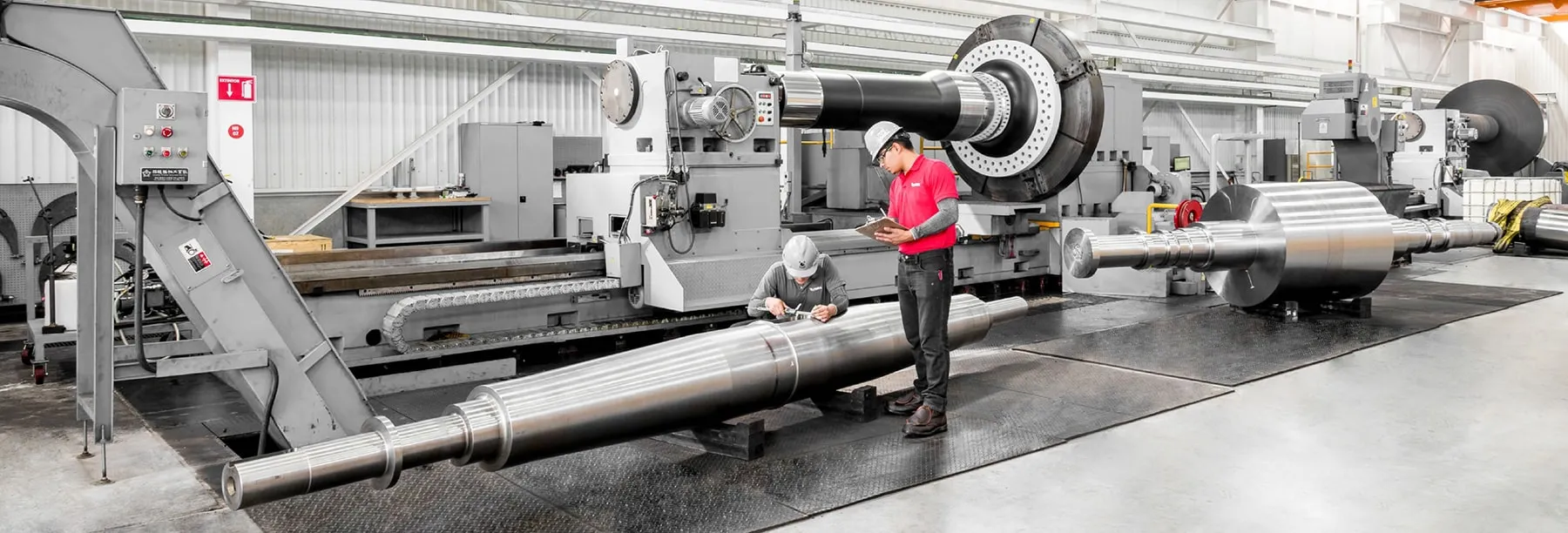

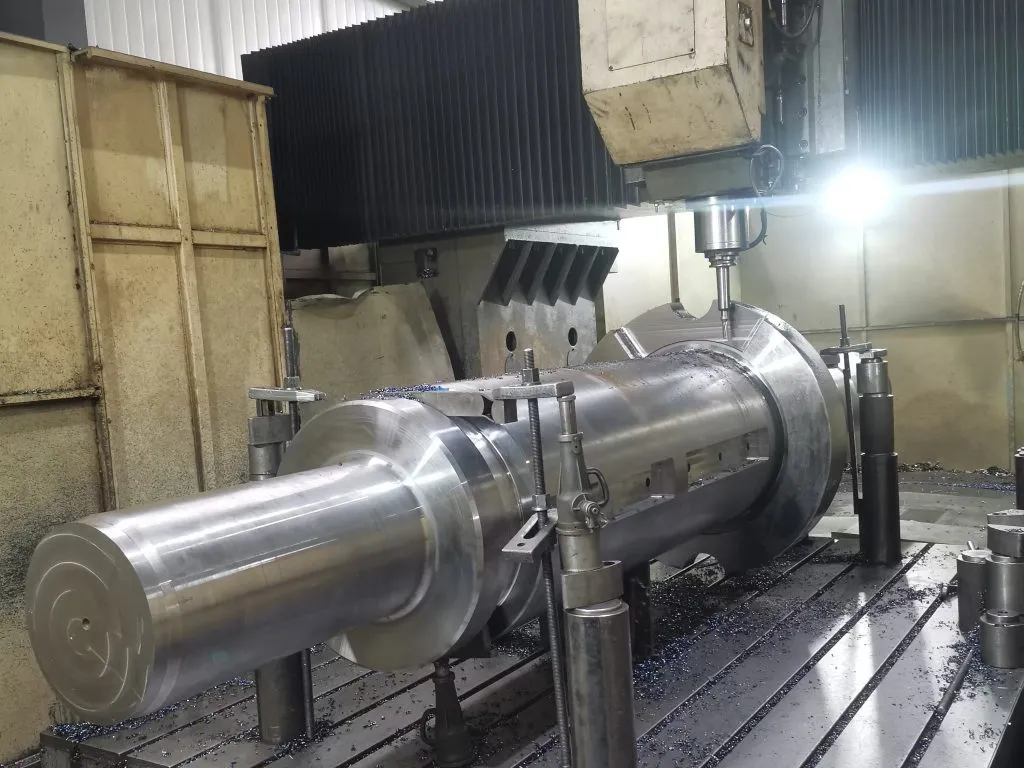

Precision CNC Machining
State-of-the-art CNC turning and milling capabilities with tight tolerance control down to ±0.0005" for critical dimensional accuracy.
- • Multi-axis CNC turning centers
- • Precision grinding and finishing
- • Keyway and spline machining
- • Surface roughness optimization
Advanced Heat Treatment
Comprehensive heat treatment services including normalization, quenching, tempering, and stress relief to optimize mechanical properties.
- • Quenching and tempering
- • Stress relief annealing
- • Normalized grain refinement
- • Hardness testing and verification
Why Choose Forged Shafts?
Forged shafts offer superior mechanical properties compared to machined or cast alternatives, providing enhanced strength, fatigue resistance, and reliability for critical applications.
Superior Strength
30-50% higher tensile strength than machined parts
Enhanced Fatigue Life
Continuous grain flow improves fatigue resistance
Cost Effectiveness
Material savings and reduced machining time

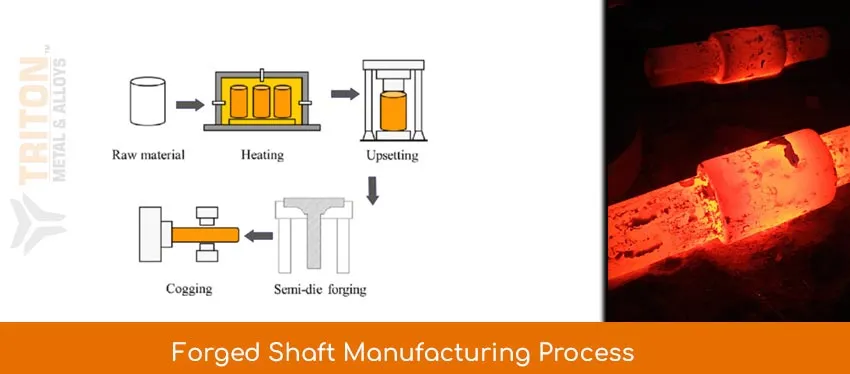

Forged Shaft Manufacturing Process
Our comprehensive manufacturing process ensures consistent quality, precise dimensions, and optimal mechanical properties for every forged shaft we produce.
1. Material Selection & Preparation
Careful selection of high-grade steel billets including AISI 4140, 4340, and stainless steel grades. Material certification and chemical analysis verification.

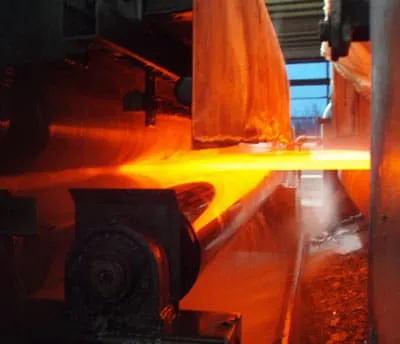

2. Heating & Forging Operation
Controlled heating to optimal forging temperature (1800-2200°F) followed by precise forming using hydraulic presses and hammers up to 5000 tons capacity.
3. Heat Treatment & Conditioning
Strategic heat treatment including normalization, quenching, and tempering to achieve desired mechanical properties and stress relief.
4. Precision Machining & Finishing
CNC turning, milling, and grinding to final dimensions. Surface finishing, balancing, and comprehensive quality inspection before delivery.
Technical Specifications & Capabilities
Materials & Heat Treatment Excellence
We work with a comprehensive range of steel grades and provide advanced heat treatment services to optimize mechanical properties for specific applications.
Steel Grades & Materials
Carbon Steels
AISI 1018, 1045, 1144 - General purpose applications with good machinability
Alloy Steels
AISI 4140, 4340, 8620 - High strength applications with superior toughness
Stainless Steels
316L, 17-4 PH, 15-5 PH - Corrosion resistant applications
Tool Steels
H13, D2, A2 - Specialized high-wear applications
Heat Treatment Services
Normalization
Grain refinement
Quenching
Hardness increase
Tempering
Toughness optimization
Stress Relief
Residual stress removal
Mechanical Property Optimization
Our advanced heat treatment capabilities ensure optimal mechanical properties tailored to your specific application requirements, including tensile strength, yield strength, impact toughness, and fatigue resistance.
Industrial Applications & Industries Served
Our forged shafts serve critical applications across diverse industries where reliability, strength, and precision are paramount for operational success.
Heavy Machinery
Main drive shafts, rotor shafts, and transmission shafts for construction equipment, mining machinery, and industrial processing equipment.
- • Excavator drive shafts
- • Crusher main shafts
- • Mill roll shafts
- • Conveyor drive shafts
Power Generation
Generator rotor shafts, turbine shafts, and coupling shafts for power plants, wind turbines, and hydroelectric facilities.
- • Steam turbine rotors
- • Generator main shafts
- • Wind turbine drive shafts
- • Hydroelectric runner shafts
Marine & Offshore
Propeller shafts, rudder shafts, and engine crankshafts for commercial vessels, offshore platforms, and naval applications.
- • Propeller drive shafts
- • Steering gear shafts
- • Winch drum shafts
- • Thruster motor shafts
Automotive & Transportation
Crankshafts, camshafts, and drive shafts for automotive, railway, and heavy-duty truck applications requiring high performance.
- • Engine crankshafts
- • Transmission input shafts
- • Axle shafts
- • Railway wheel shafts
Oil & Gas
Pump shafts, compressor rotors, and drilling equipment shafts for upstream, midstream, and downstream operations.
- • Centrifugal pump shafts
- • Compressor rotors
- • Drilling mud pump shafts
- • Pipeline pump shafts
Aerospace & Defense
High-performance shafts for aircraft engines, landing gear systems, and defense equipment requiring strict quality standards.
- • Jet engine rotors
- • Landing gear actuators
- • Helicopter drive shafts
- • Missile guidance shafts
Application-Specific Engineering
Our engineering team works closely with customers to understand specific application requirements and develop customized forged shaft solutions that meet or exceed performance expectations.
Load Analysis & Design
Comprehensive stress analysis and fatigue life calculation
Material Selection Optimization
Custom alloy selection based on operating conditions
Performance Validation
Testing and validation to ensure specification compliance
Quality Control & Certifications
Our comprehensive quality management system ensures every forged shaft meets the highest standards of quality, reliability, and performance through rigorous testing and inspection protocols.
Quality Testing & Inspection
Material Testing
Comprehensive chemical analysis, mechanical testing, and metallurgical examination
- • Chemical composition verification
- • Tensile and impact testing
- • Hardness measurement
- • Microstructure analysis
Dimensional Inspection
Precision measurement using advanced coordinate measuring machines (CMM)
- • CMM dimensional verification
- • Surface roughness measurement
- • Geometric tolerance checking
- • Final inspection reports
Non-Destructive Testing
Advanced NDT methods to detect internal defects and ensure structural integrity
- • Ultrasonic testing (UT)
- • Magnetic particle inspection
- • Dye penetrant testing
- • Radiographic examination
Industry Certifications
Quality Metrics & Performance
Frequently Asked Questions
Get answers to common questions about our forged shaft manufacturing services, processes, and capabilities.
What are the advantages of forged shafts over machined shafts?
Forged shafts offer superior mechanical properties including 30-50% higher tensile strength, improved fatigue life due to continuous grain flow, better impact resistance, and enhanced structural integrity. The forging process also provides material savings and cost-effectiveness for high-volume production compared to machining from solid bar stock.
What is the typical lead time for custom forged shafts?
Lead times vary depending on complexity, size, and quantity. Standard forged shafts typically require 6-8 weeks, while complex custom designs may need 10-12 weeks. We provide detailed project timelines during the quotation process and work closely with customers to meet critical delivery requirements.
What materials can be used for forged shaft manufacturing?
We work with a wide range of materials including carbon steels (1018, 1045, 1144), alloy steels (4140, 4340, 8620), stainless steels (316L, 17-4 PH, 15-5 PH), and tool steels (H13, D2, A2). Material selection depends on application requirements such as strength, corrosion resistance, and operating temperature.
What tolerances can be achieved with forged shafts?
Our precision machining capabilities allow us to achieve tolerances as tight as ±0.0005" on critical dimensions. Surface finish can be optimized to 8-16 RMS depending on application requirements. We use advanced CNC equipment and coordinate measuring machines to ensure consistent dimensional accuracy.
Do you provide heat treatment services for forged shafts?
Yes, we offer comprehensive heat treatment services including normalization, quenching and tempering, stress relief annealing, and case hardening. Our heat treatment processes are designed to optimize mechanical properties such as hardness, tensile strength, and impact toughness based on specific application requirements.
What quality certifications and testing do you provide?
We maintain ISO 9001:2015, AS9100D, and API Q1 certifications. Every forged shaft undergoes comprehensive testing including chemical analysis, mechanical property testing, dimensional inspection, and non-destructive testing (ultrasonic, magnetic particle, dye penetrant). Complete material test certificates and inspection reports are provided with each shipment.
What are the size limitations for forged shaft manufacturing?
Our forging capabilities accommodate shafts with diameters from 0.25" to 18" and lengths up to 120". We have hydraulic presses with capacities up to 5000 tons for large forgings. For projects outside these ranges, we can work with partner facilities or explore alternative manufacturing approaches.
Can you handle both prototype and production quantities?
Absolutely. We support projects from single prototype pieces to high-volume production runs. Our flexible manufacturing processes allow us to optimize tooling and production methods based on quantity requirements. We also offer prototype development services to validate designs before full production.
