Professional Gear Rack Manufacturing Services
Precision-engineered linear gear racks and rack & pinion systems for automotive, CNC, automation, and industrial applications. Custom designs with superior quality and performance.
Comprehensive Gear Rack Solutions
From precision straight-tooth racks to complex helical gear racks, we manufacture custom linear motion solutions that deliver exceptional performance and reliability for demanding industrial applications.
Custom Design
Tailored gear rack solutions designed to meet your specific application requirements and performance standards.
Precision Manufacturing
Advanced CNC machining and gear cutting technologies ensure superior accuracy and surface finish quality.
Premium Materials
High-grade steel, aluminum, and engineering plastics for optimal durability and performance characteristics.
Fast Delivery
Rapid prototyping and efficient production processes to meet your project timelines and delivery requirements.
Gear Rack Product Range
Our comprehensive range of gear racks covers all linear motion requirements, from simple straight-tooth designs to complex helical configurations for precision applications.
Straight Tooth Gear Racks
Cost-effective linear motion solution with straight-cut teeth perpendicular to the rack axis. Ideal for applications requiring simple linear movement with moderate precision requirements.
- Modules: 0.5 to 10
- Lengths: 100mm to 3000mm
- Materials: Steel, Stainless Steel, Aluminum
- Precision: DIN 8 to DIN 6
Helical Gear Racks
High-performance linear motion with angled teeth for smoother operation, reduced noise, and higher load capacity. Perfect for precision CNC and automation systems.
- Helix Angles: 15° to 30°
- Higher Load Capacity
- Quieter Operation
- Superior Surface Finish
Round Gear Racks
Cylindrical gear racks for space-constrained applications. Easier mounting and reduced material usage while maintaining precise linear motion capabilities.
- Compact Design
- Easy Installation
- Reduced Weight
- Cost Effective
Square Gear Racks
Traditional square-profile gear racks offering excellent stability and mounting versatility. Standard choice for most industrial linear motion applications.
- High Stability
- Versatile Mounting
- Industry Standard
- Proven Performance
Advanced Manufacturing Process
Our state-of-the-art manufacturing facility utilizes cutting-edge technology and proven processes to deliver gear racks that meet the highest quality standards.
Precision Gear Cutting

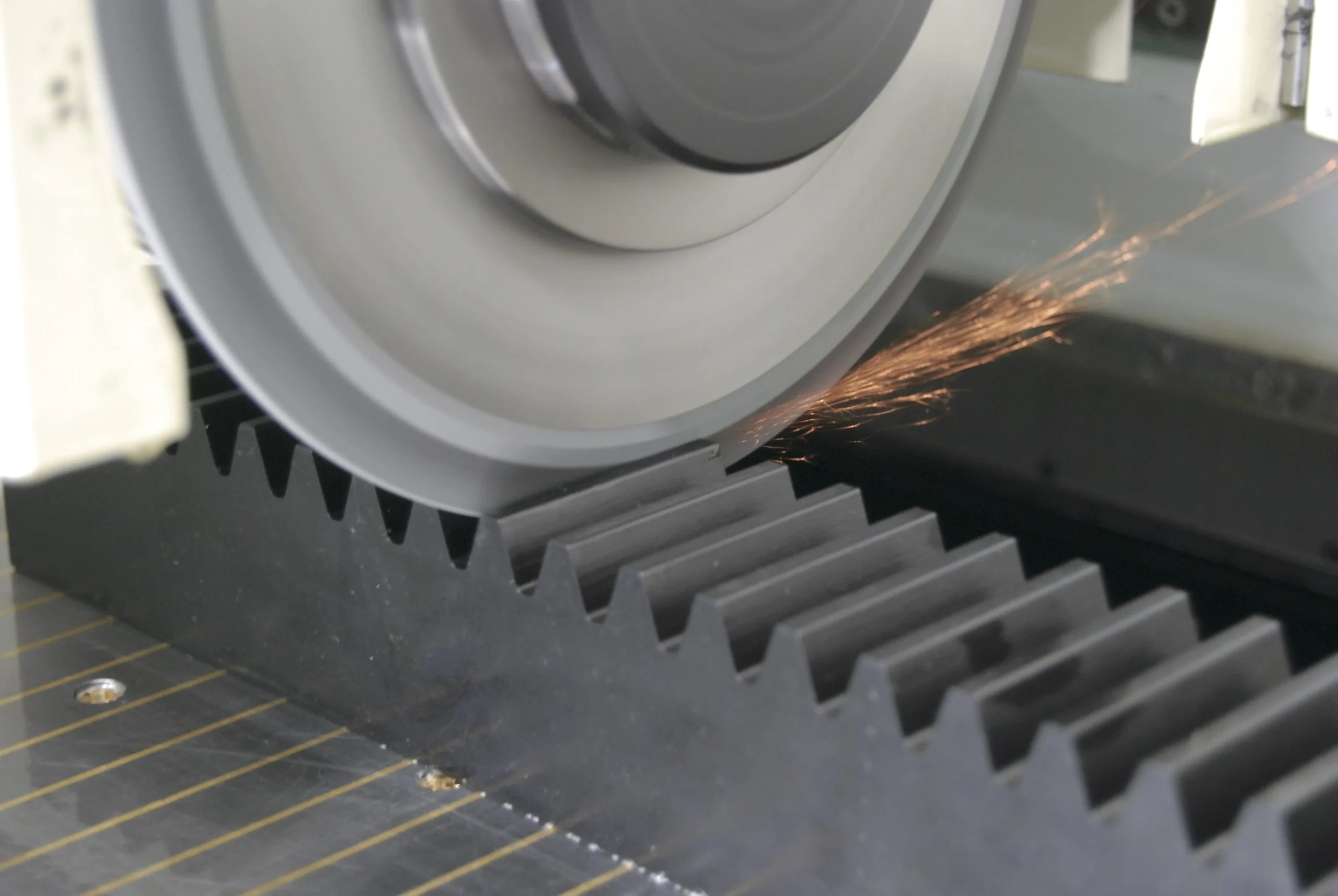

Our advanced gear cutting machines utilize specialized rack cutters to achieve precise tooth profiles and optimal surface finishes. The cutting process ensures consistent tooth geometry and dimensional accuracy across the entire length of the gear rack.
Material Preparation
High-quality raw materials are cut to specified lengths and prepared for machining operations.
CNC Gear Cutting
Precision CNC machines cut accurate tooth profiles using specialized rack cutting tools.
Quality Inspection
Comprehensive dimensional and surface quality checks ensure conformance to specifications.
Heat Treatment & Finishing
Post-machining heat treatment processes enhance material properties and ensure optimal performance characteristics. Our finishing operations deliver superior surface quality and dimensional accuracy.
Heat Treatment
Induction hardening or through-hardening processes enhance wear resistance and durability.
Precision Grinding
Final grinding operations achieve superior surface finish and dimensional precision.
Final Quality Control
Comprehensive testing and inspection ensure every gear rack meets stringent quality standards.
Technical Specifications
Comprehensive technical capabilities covering a wide range of applications and performance requirements.
| Parameter | Capability Range | Standard Options |
|---|---|---|
| Module Range | 0.5 to 25 | 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10 |
| Maximum Length | Up to 3000mm | 500mm, 1000mm, 1500mm, 2000mm |
| Pressure Angle | 14.5°, 20°, 25° | 20° (Standard), 14.5° (Optional) |
| Precision Grade | DIN 5 to DIN 10 | DIN 6 (High Precision), DIN 8 (Standard) |
| Material Options | Steel, Stainless Steel, Aluminum, Plastic | C45 Steel, 304SS, 6061 Aluminum |
| Surface Treatment | Various Options Available | Natural, Anodized, Plated, Heat Treated |
Industry Applications
Our gear racks serve diverse industries with precision linear motion solutions that enhance performance and reliability across demanding applications.
Automotive Industry
Precision steering systems, automatic door mechanisms, and linear actuators for various automotive applications requiring reliable linear motion control.
- Steering Systems
- Sliding Door Mechanisms
- Seat Adjustment Systems
CNC & Automation
High-precision linear drives for CNC machines, robotic systems, and automated manufacturing equipment requiring exceptional accuracy and repeatability.
- CNC Machine Tools
- Robotic Systems
- Automation Equipment
Industrial Machinery
Heavy-duty linear motion solutions for construction equipment, material handling systems, and industrial automation requiring high load capacity.
- Construction Equipment
- Material Handling
- Heavy Machinery
Medical Equipment
Precision linear motion systems for medical devices, hospital beds, and diagnostic equipment requiring smooth, quiet, and reliable operation.
- Hospital Beds
- Imaging Equipment
- Surgical Devices
Aerospace
Lightweight, high-strength gear racks for aircraft control systems, satellite mechanisms, and aerospace ground support equipment.
- Aircraft Controls
- Satellite Systems
- Ground Support
Marine Applications
Corrosion-resistant gear racks for marine steering systems, deck equipment, and offshore platform mechanisms operating in harsh environments.
- Marine Steering
- Deck Equipment
- Offshore Platforms
Premium Materials & Finishes
We utilize high-quality materials and advanced surface treatments to ensure optimal performance, durability, and corrosion resistance for your specific application requirements.
Carbon Steel
C45, S45C high-strength carbon steel for demanding applications requiring excellent wear resistance.
- • High tensile strength
- • Excellent machinability
- • Cost-effective solution
- • Heat treatment capable
Stainless Steel
304, 316 stainless steel grades providing superior corrosion resistance for harsh environments.
- • Corrosion resistant
- • Food-grade options
- • High temperature capability
- • Easy maintenance
Aluminum Alloy
6061-T6 aluminum for lightweight applications requiring excellent strength-to-weight ratio.
- • Lightweight design
- • Good corrosion resistance
- • Excellent machinability
- • Anodizing compatible
Engineering Plastics
POM, Nylon, and PEEK plastics for noise-sensitive and corrosive environment applications.
- • Self-lubricating
- • Chemical resistant
- • Noise reduction
- • FDA compliant options
Quality Assurance & Certification
Our comprehensive quality management system ensures every gear rack meets stringent performance standards and customer specifications.
Comprehensive Quality Control
Our multi-stage quality control process encompasses incoming material inspection, in-process monitoring, and final product verification to ensure consistent quality and performance.
Certifications
- ISO 9001:2015
- ISO 14001:2015
- AS9100D
- IATF 16949
Testing Equipment
- CMM Measurement
- Gear Testing Centers
- Surface Roughness
- Hardness Testing
Quality Guarantee
Every gear rack is backed by our comprehensive quality guarantee, with full traceability documentation and performance certificates provided upon request.
Custom Design & Engineering Services
Our experienced engineering team provides comprehensive design support to develop custom gear rack solutions tailored to your specific application requirements.
Design Consultation
Expert engineering consultation to optimize gear rack design for your specific application, ensuring optimal performance, cost-effectiveness, and manufacturability.
- Application analysis
- Load calculations
- Material selection
- Design optimization
Prototyping
Rapid prototyping services to validate design concepts and performance characteristics before full production, reducing development time and costs.
- Fast turnaround
- Multiple iterations
- Performance testing
- Design validation
Production Support
Comprehensive production support from initial design through full-scale manufacturing, ensuring seamless transition from prototype to production.
- DFM analysis
- Tooling design
- Process optimization
- Quality assurance
Engineering Capabilities
Our advanced engineering capabilities enable us to tackle complex design challenges and deliver innovative solutions that exceed performance expectations.
Design Software
- • CAD/CAM Systems
- • FEA Analysis
- • Gear Design Software
- • Simulation Tools
Testing Capabilities
- • Load Testing
- • Fatigue Analysis
- • Noise Measurement
- • Wear Testing
Frequently Asked Questions
Get answers to common questions about our gear rack manufacturing services, capabilities, and technical specifications.
What is the difference between straight tooth and helical gear racks?
Straight tooth gear racks have teeth cut perpendicular to the rack axis, offering simple design and cost-effectiveness. Helical gear racks have angled teeth that provide smoother engagement, higher load capacity, reduced noise, and improved surface contact, making them ideal for precision applications requiring superior performance.
What materials are recommended for different applications?
Material selection depends on your specific requirements: Carbon steel (C45) for general industrial use with high strength, stainless steel (304/316) for corrosive environments, aluminum alloy (6061-T6) for lightweight applications, and engineering plastics (POM, Nylon) for noise-sensitive or food-grade applications. Our engineers can help select the optimal material for your needs.
What precision levels can you achieve in gear rack manufacturing?
We manufacture gear racks to DIN 5 through DIN 10 precision grades. Standard production achieves DIN 8 quality, while high-precision applications can reach DIN 6 or better. Precision grinding operations can achieve surface finishes of Ra 0.8μm or better, with dimensional tolerances of ±0.02mm depending on the module and length requirements.
Can you manufacture custom gear racks to specific dimensions?
Yes, we specialize in custom gear rack manufacturing. We can produce racks to your exact specifications including custom modules, lengths up to 3000mm, special cross-sections, unique mounting features, and specific material requirements. Our engineering team provides design support to optimize your custom solution for performance and manufacturability.
What is the typical lead time for gear rack orders?
Lead times vary based on complexity and quantity. Standard gear racks from stock: 1-2 weeks. Custom designs requiring new tooling: 3-4 weeks. Large volume production orders: 4-6 weeks. Prototype and small quantity orders can often be expedited. We provide detailed scheduling information with every quotation to help you plan your project timeline.
Do you provide matching pinion gears for rack and pinion systems?
Yes, we manufacture complete rack and pinion systems including precision-matched pinion gears. Our pinions are designed and manufactured to ensure optimal meshing with our gear racks, providing smooth operation, minimal backlash, and maximum system performance. We can supply both components individually or as complete matched sets.
What quality certifications and documentation do you provide?
We provide comprehensive quality documentation including material certificates, dimensional inspection reports, surface finish measurements, and hardness test results. Our facility is ISO 9001:2015 certified, with additional certifications available for automotive (IATF 16949) and aerospace (AS9100D) applications. Full traceability documentation is maintained for all products.
