Professional Motor Shafts Manufacturing Services
Precision-engineered motor shafts with advanced CNC turning, grinding, and balancing capabilities for superior performance across industries
Complete Motor Shaft Manufacturing Solutions
From precision turning to final balancing, we deliver motor shafts that meet the most demanding specifications

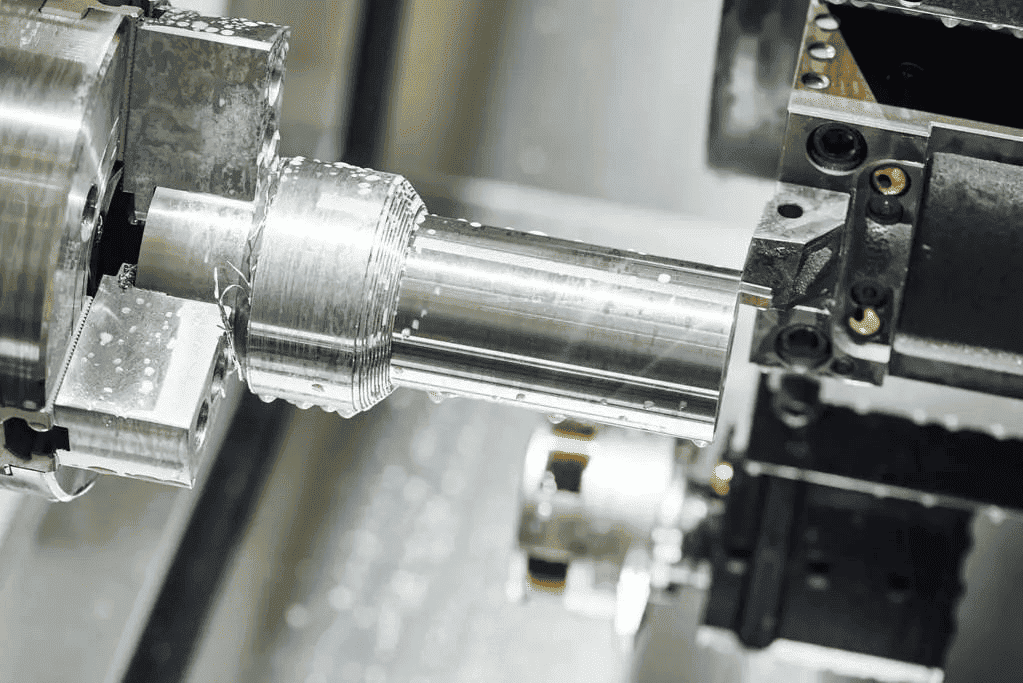

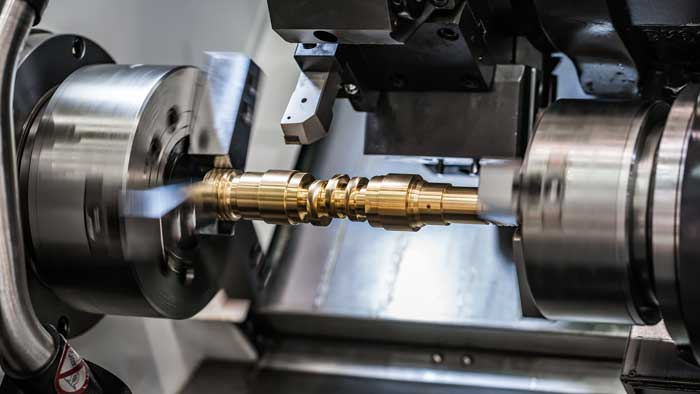

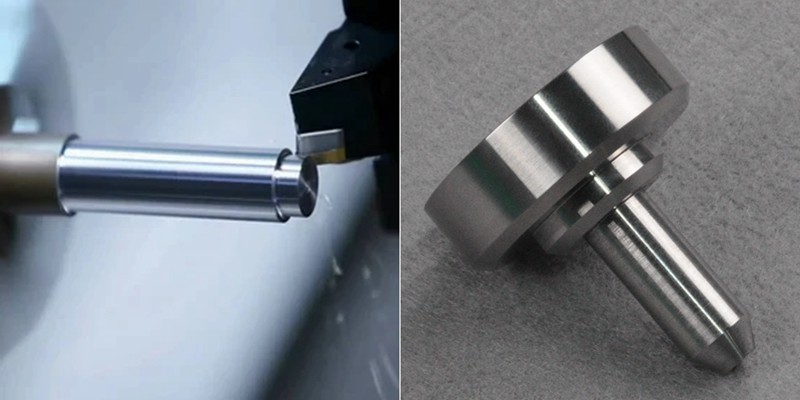

CNC Turning
High-precision CNC turning operations for motor shaft manufacturing with tolerances up to ±0.0001″ for optimal fit and performance.
- • Multi-axis CNC turning centers
- • Live tooling capabilities
- • Diameter range: 3mm – 500mm
- • Length capacity: up to 2000mm
Precision Grinding
Advanced cylindrical and centerless grinding for superior surface finish and dimensional accuracy on motor shaft bearing journals.
- • Cylindrical grinding: Ra 0.1-0.4μm
- • Centerless grinding capabilities
- • Profile grinding for complex shapes
- • Hard turning post-heat treatment
Dynamic Balancing
Professional rotor balancing services to eliminate vibration and ensure smooth operation in high-speed motor applications.
- • Static and dynamic balancing
- • ISO 1940 G-grade compliance
- • Up to 50,000 RPM capability
- • Vibration analysis and correction
CNC Milling
Precision milling operations for keyways, flats, and complex shaft features with advanced 5-axis CNC machining centers.
- • 3, 4, and 5-axis milling
- • Keyway cutting and profiling
- • Shaft flats and grooves
- • Complex contour machining
Heat Treatment
Comprehensive heat treatment services including induction hardening, carburizing, and stress relieving for enhanced durability.
- • Induction hardening (HRC 45-65)
- • Carburizing and case hardening
- • Stress relieving and tempering
- • Selective hardening zones
Quality Control
Rigorous inspection and testing protocols using advanced metrology equipment to ensure consistent quality and performance.
- • CMM dimensional inspection
- • Surface roughness measurement
- • Hardness testing and verification
- • Material certification
Advanced Manufacturing Capabilities
Our state-of-the-art facility combines traditional machining expertise with cutting-edge CNC technology to deliver motor shafts that exceed industry standards.
Precision Machining Centers
Multi-axis CNC turning and milling centers with live tooling for complete shaft machining in single setups.
Metrology & Inspection
Advanced CMM systems, optical comparators, and surface roughness testers for comprehensive quality verification.
Material Expertise
Extensive experience with carbon steels, alloy steels, stainless steels, and specialty materials for motor applications.
Technical Specifications & Capabilities
Comprehensive manufacturing capabilities for diverse motor shaft requirements
Diameter Range
3mm – 500mm
Micro to large motor shafts
Length Capacity
Up to 2000mm
Extended length capabilities
Tolerance
±0.0001″
Ultra-precision machining
Surface Finish
Ra 0.1μm
Mirror-like finish quality
Material Capabilities
Carbon Steels
- • 1018, 1045, 1144
- • 12L14 (Free machining)
- • A36, A572 structural grades
Alloy Steels
- • 4140, 4340 (High strength)
- • 8620 (Carburizing grade)
- • 4130 (Chromoly)
Stainless Steels
- • 304, 316 (Corrosion resistant)
- • 17-4 PH (Precipitation hardening)
- • 416 (Free machining)
Industries We Serve
Motor shafts engineered for diverse industrial applications and demanding environments
Automotive
Electric vehicle motors, cooling fans, power steering pumps, window regulators
Industrial
Conveyor motors, pump drives, compressor shafts, industrial automation
Aerospace
Aircraft actuators, fuel pump motors, environmental control systems
Medical
Surgical equipment, diagnostic devices, laboratory automation
Energy
Wind turbine generators, hydroelectric pumps, solar tracking systems
Marine
Propulsion systems, bilge pumps, navigation equipment
Food Processing
Mixer motors, conveyor drives, packaging equipment
Appliances
Washing machines, dishwashers, HVAC systems, vacuum cleaners
Precision Balancing & Alignment
Critical for high-performance motor applications, our dynamic balancing services eliminate vibration and ensure smooth operation across all speed ranges.
Static and Dynamic Balancing up to 50,000 RPM
ISO 1940 G-Grade Compliance (G0.4 to G400)
Vibration Analysis and Correction

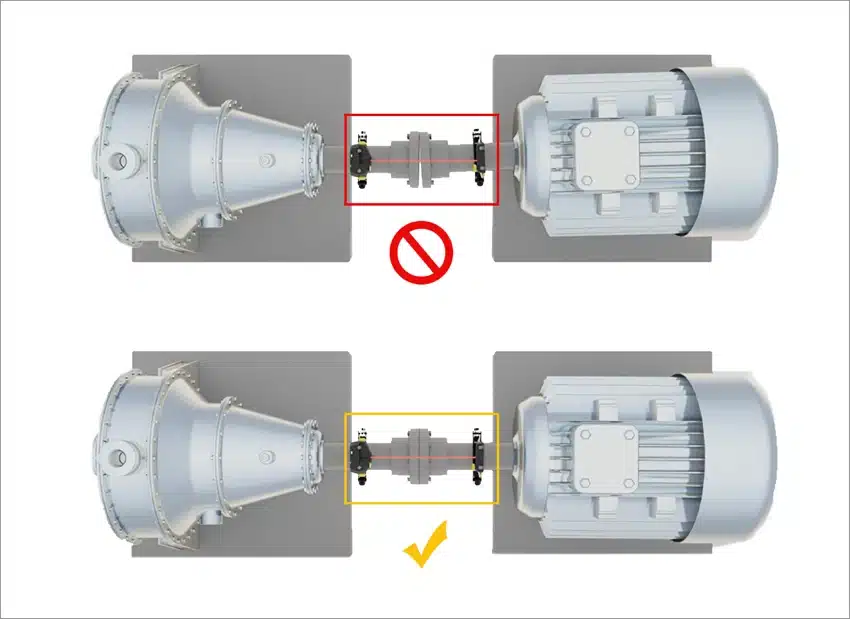

Shaft Alignment and Straightening Services
Balancing Standards

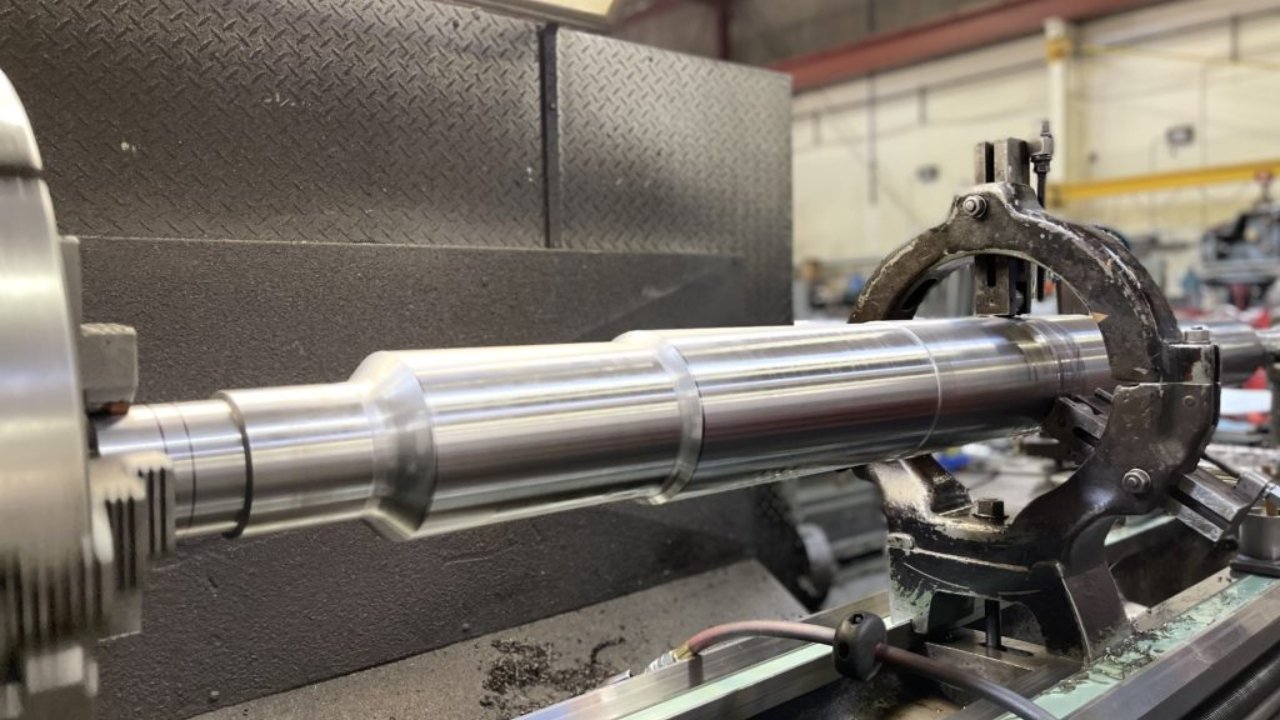

Our Manufacturing Process
From raw material to finished motor shaft – a comprehensive quality-driven approach
Material Selection
Quality steel selection based on application requirements, strength, and machinability characteristics.
Rough Machining
Initial turning operations to remove excess material and establish basic shaft geometry and dimensions.
Heat Treatment
Controlled heating and cooling processes to achieve required hardness and mechanical properties.
Finish Machining
Precision grinding and turning to final dimensions with superior surface finish and tight tolerances.
Feature Machining
Keyways, flats, threading, and other specialized features using advanced CNC milling operations.
Balancing
Dynamic balancing to eliminate vibration and ensure smooth rotation at operational speeds.
Quality Control
Comprehensive inspection using CMM, surface roughness testing, and dimensional verification.
Final Packaging
Protective packaging with detailed documentation and certificates of compliance.
Frequently Asked Questions
Expert answers to common motor shaft manufacturing questions
What tolerances can you achieve on motor shafts?
We can achieve tolerances as tight as ±0.0001″ (±0.0025mm) on critical dimensions such as bearing journals and coupling interfaces. Standard production tolerances are typically ±0.001″ to ±0.005″ depending on the feature and application requirements.
What materials do you recommend for high-speed motor applications?
For high-speed applications, we recommend alloy steels like 4140 or 4340 for their excellent strength-to-weight ratio and fatigue resistance. For corrosive environments, 17-4 PH stainless steel provides both strength and corrosion resistance. Material selection depends on speed, load, environment, and balancing requirements.
Do you provide balancing services for motor shafts?
Yes, we provide both static and dynamic balancing services up to 50,000 RPM. Our balancing capabilities meet ISO 1940 standards from G0.4 (ultra-precision) to G400 (heavy industrial). We can balance individual shafts or complete rotor assemblies including magnets and laminations.
What is your typical lead time for custom motor shafts?
Standard lead times range from 2-6 weeks depending on complexity, quantity, and material requirements. Rush orders can often be accommodated in 3-5 days for an additional fee. Heat treatment and balancing may add 1-2 weeks to the schedule depending on the specific requirements.
Can you machine shafts from customer-supplied materials?
Yes, we can machine shafts from customer-supplied materials. We require a material certification and recommend providing 10-20% extra material to account for setup and potential issues. We’ll perform incoming inspection to verify material condition and chemistry before machining.
What quality certifications do you maintain?
We maintain ISO 9001:2015 quality management system certification and AS9100D for aerospace applications. Our quality system includes full traceability, documented procedures, and calibrated measurement equipment. We provide certificates of compliance with all shipments.
Do you offer design assistance for motor shaft optimization?
Yes, our engineering team provides design consultation including stress analysis, material selection, manufacturing optimization, and cost reduction recommendations. We can work from your prints or collaborate on the complete design from concept to production.
What surface finish specifications can you achieve?
We can achieve surface finishes from Ra 0.1μm to Ra 3.2μm depending on the machining process and requirements. Precision grinding typically achieves Ra 0.1-0.4μm, while fine turning can reach Ra 0.8-1.6μm. Special applications may require super-finishing or lapping for even finer finishes.
