Leading manufacturer of high-precision screw gears and worm gear systems for industrial applications.
Our advanced manufacturing capabilities deliver custom solutions with exceptional quality and reliability.
Screw gears, also known as worm gears, represent one of the most efficient solutions for achieving high reduction ratios in compact spaces. Our manufacturing expertise spans from single-thread worms to complex multi-start configurations, delivering exceptional performance across diverse industrial applications.
With advanced CNC machining capabilities, precision hobbing equipment, and comprehensive finishing processes, we manufacture screw gears that meet the most demanding specifications for torque transmission, accuracy, and longevity.
Our state-of-the-art manufacturing facility employs multiple advanced processes to ensure every screw gear meets exact specifications and performance requirements.
Our advanced CNC machining centers provide exceptional accuracy for both worm screws and worm wheels. Multi-axis capabilities enable complex geometries and tight tolerances essential for high-performance applications.

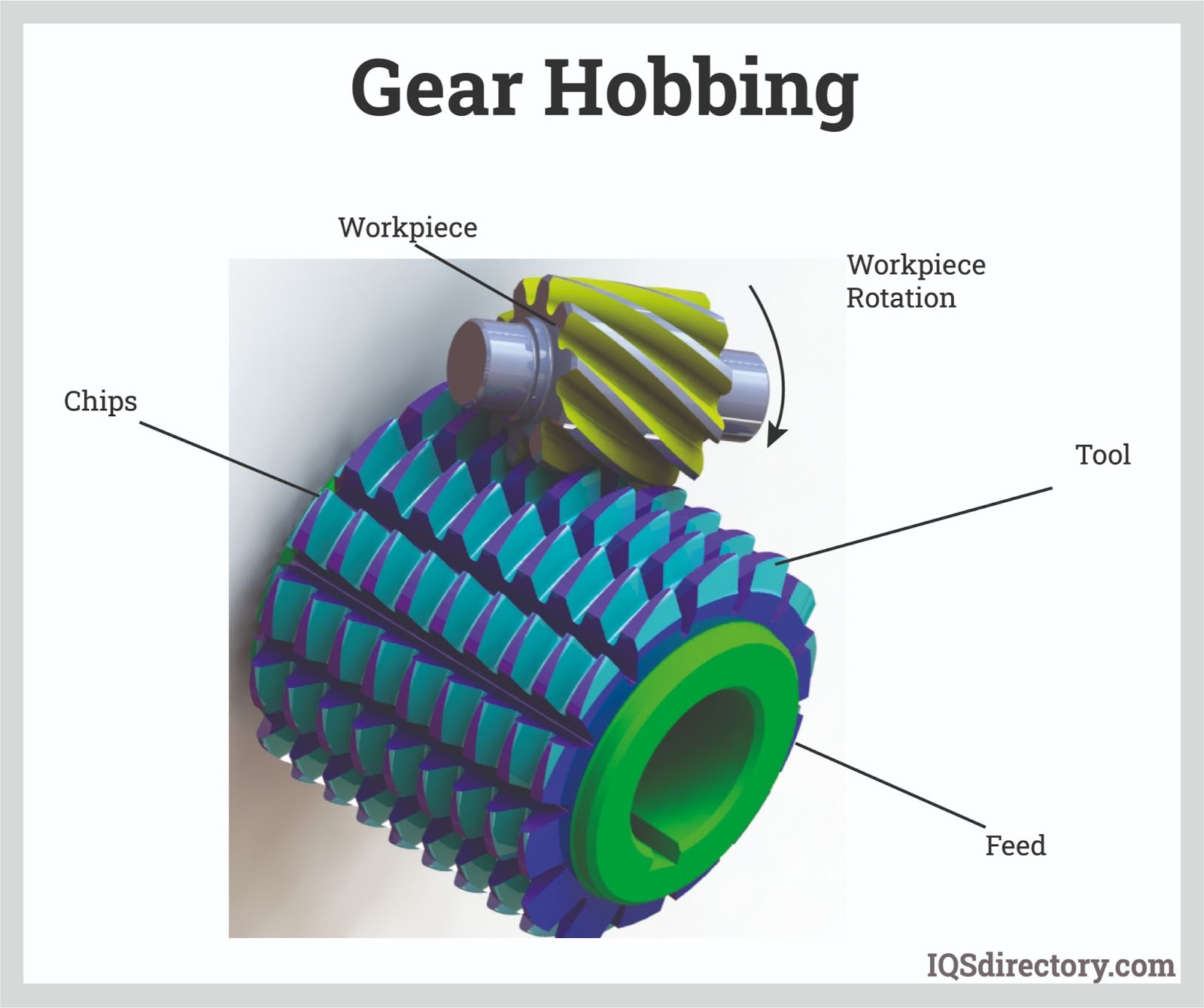

Precision hobbing for worm wheels with superior tooth geometry and surface finish. Our hobbing machines accommodate various modules and tooth profiles.
High-precision grinding operations for critical applications requiring superior surface finish and dimensional accuracy in worm threads.
Advanced turning operations for worm screw production with precise lead angles, thread forms, and dimensional control throughout the process.
Comprehensive specifications covering all aspects of screw gear design and manufacturing

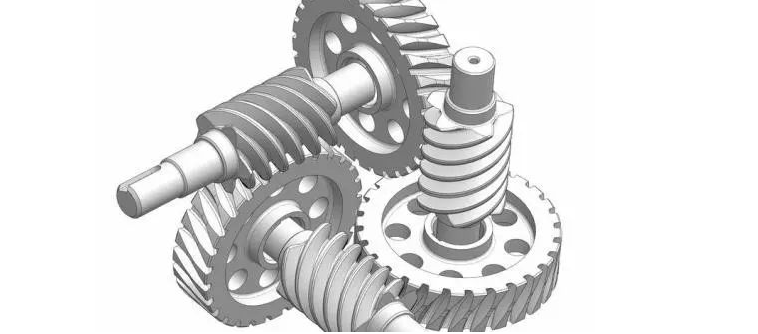

Both single and multiple thread configurations available
Inherent self-locking capability for safety applications
Low noise and vibration characteristics
High reduction ratios in minimal space
Premium materials and rigorous quality control ensure exceptional performance and longevity
We offer a comprehensive range of materials optimized for specific applications and operating conditions. Our material selection process considers factors such as load capacity, operating temperature, corrosion resistance, and cost-effectiveness.
High strength and durability for demanding applications
Corrosion resistance for harsh environments
Excellent wear resistance and self-lubricating properties
Lightweight solutions for aerospace and automotive
Incoming material verification and certification
Continuous monitoring during manufacturing
Precision measurement and validation
Complete quality documentation and testing
Screw gears serve critical functions across diverse industries, providing reliable power transmission solutions
Our screw gears excel in applications requiring high reduction ratios, self-locking capabilities, and smooth operation. The unique geometry of worm gear systems makes them ideal for precision positioning and heavy-duty transmission requirements.
Conveyor systems, lifts, and automated storage solutions benefit from the high reduction ratios and self-locking properties of screw gears.
CNC machines, robotic systems, and precision positioning equipment rely on the accuracy and smooth operation of our screw gears.
Mining equipment, steel mills, and heavy machinery applications where high torque and reliable operation are critical requirements.
Understanding the unique benefits and performance characteristics of screw gear systems
Achieve reduction ratios from 4:1 to 300:1 in a single stage, eliminating the need for complex multi-stage systems.
Inherent self-locking prevents back-driving, providing safety in vertical applications and holding positions without power.
Right-angle configuration and high reduction ratios result in significantly smaller footprint compared to other gear types.
Low noise and vibration characteristics make them ideal for applications requiring quiet operation.
Efficiency varies based on reduction ratio, load conditions, and lubrication quality.
Tailored solutions from concept to production with comprehensive engineering support
Our custom manufacturing process begins with detailed consultation to understand your specific requirements. We provide comprehensive design support, prototyping, and full-scale production capabilities to deliver exactly what your application demands.
Expert engineering review and optimization of your specifications
Quick turnaround prototypes for testing and validation
Scalable production from small batches to high-volume runs
Comprehensive testing and documentation for every part
Complete design services including 3D modeling, stress analysis, and performance optimization for your specific application requirements.
Expert guidance on material selection considering load requirements, environmental conditions, and cost optimization factors.
Reliable delivery schedules with ongoing technical support and maintenance recommendations for optimal performance.
Common questions about screw gear manufacturing and applications

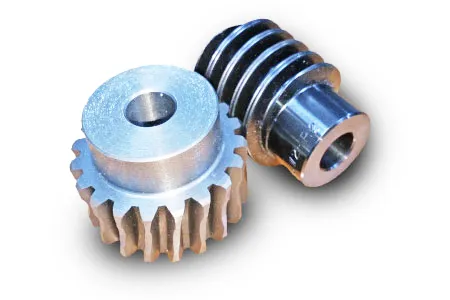

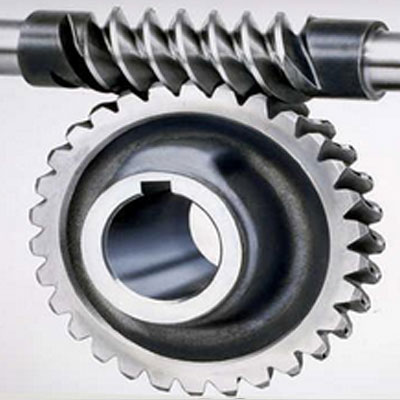

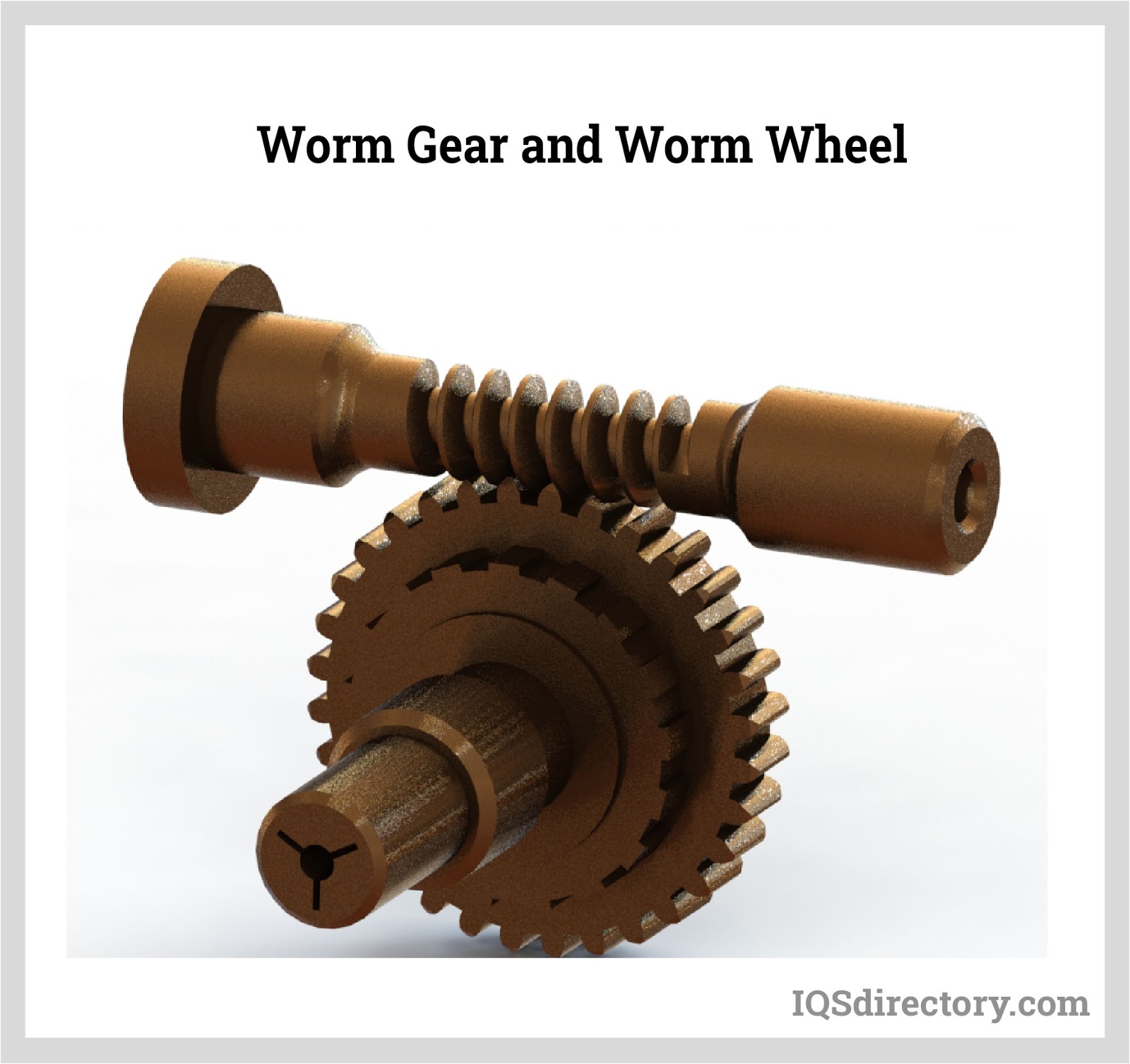

Screw gears and worm gears are essentially the same type of gear system, with the terminology often used interchangeably. The system consists of a worm (screw-like gear) and a worm wheel (gear), providing high reduction ratios in a right-angle configuration. Some manufacturers distinguish “screw gears” as crossed helical gears operating at 90°, but in practical applications, both terms refer to the same worm drive technology.
Screw gear systems can achieve reduction ratios from 4:1 up to 300:1 in a single stage. Common ratios include 10:1, 15:1, 20:1, 30:1, 40:1, 50:1, 60:1, and 100:1. The specific ratio depends on the number of threads on the worm and the number of teeth on the worm wheel. Higher ratios result in lower efficiency but provide greater torque multiplication and self-locking capability.
Worm gear efficiency is lower (30-98% depending on ratio) because power transmission occurs through sliding contact rather than rolling contact. This sliding action generates more friction and heat, especially at higher reduction ratios. However, this sliding contact also provides the benefits of smooth, quiet operation and self-locking capability. Proper lubrication and material selection can optimize efficiency within the inherent constraints of the design.

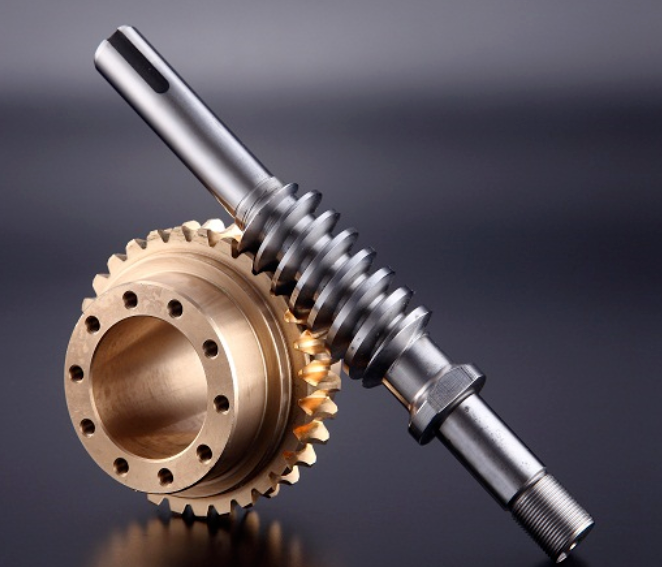

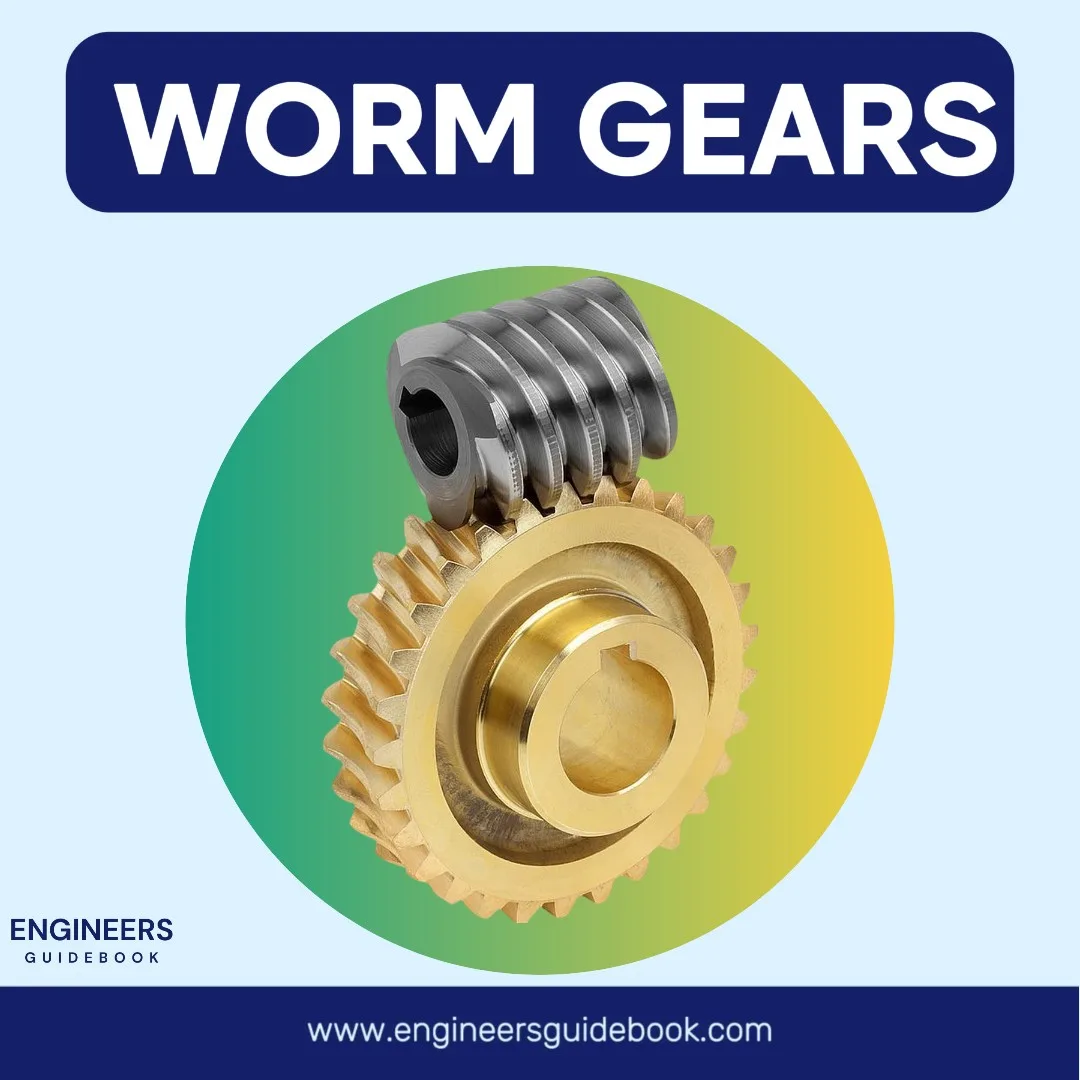

The optimal material combination typically involves a hardened steel worm paired with a bronze or brass worm wheel. The steel worm provides durability and wear resistance, while the softer bronze wheel accommodates minor misalignments and provides good sliding characteristics. For high-load applications, both components may be made from hardened steel. Stainless steel combinations are used for corrosive environments, while aluminum alloys suit lightweight applications.
Self-locking is beneficial when you need to maintain position without continuous power, prevent back-driving, or ensure safety in vertical applications. Applications like elevators, hoists, adjustable platforms, and positioning systems typically require self-locking. The self-locking capability depends on the lead angle of the worm – generally, lead angles below 5-7° provide reliable self-locking, while higher angles may require additional braking mechanisms.
Lead times vary based on complexity and quantity. Simple custom gears typically require 3-4 weeks, while complex multi-start worms or large assemblies may take 6-8 weeks. Prototypes can often be delivered in 1-2 weeks. Rush orders may be accommodated with expedited scheduling. Standard modifications to existing designs generally have shorter lead times than completely custom designs requiring new tooling.

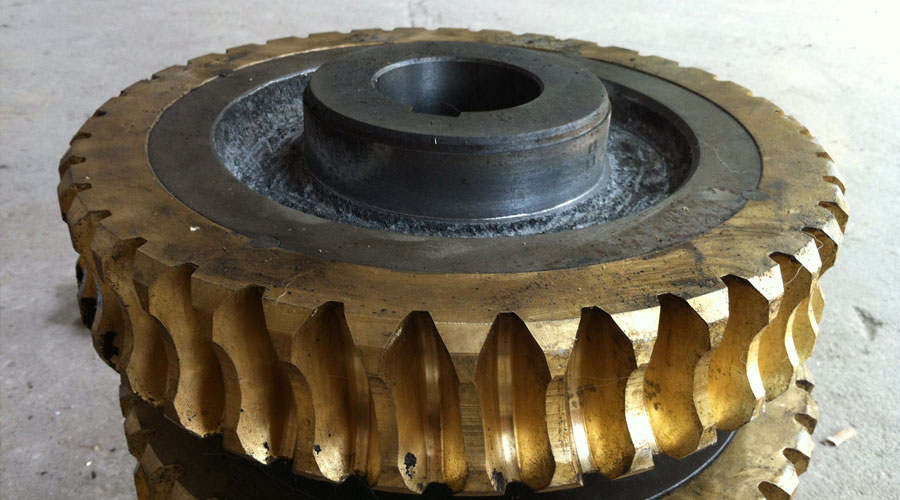

Regular maintenance includes lubrication monitoring, periodic oil changes, and inspection for wear patterns. Since worm gears operate through sliding contact, proper lubrication is critical for longevity. Synthetic gear oils often provide better performance than mineral oils. Inspect for proper mesh contact, unusual wear patterns, and maintain proper operating temperatures. Most systems require oil changes every 2000-5000 operating hours, depending on load and environmental conditions.
Professional CNC machining and custom parts manufacturing services, meeting your precision machining needs with rapid delivery of high-quality components.
