What is a Countersink Comprehensive Guide to Types and Uses

Are you wondering what a countersink is and how it can elevate your CNC machining or woodworking projects? Whether you’re a DIY enthusiast or a seasoned machinist, mastering countersinking is key to achieving professional, polished results. At TOPCNCPRO, we’ve seen firsthand how the right techniques and tools can transform your work. In this comprehensive guide, you’ll uncover everything you need to know about countersinks—from their purpose and types to expert tips for precision. Let’s dive in and unlock the secrets to flawless countersinking!

What is a Countersink Definition and Purpose

A countersink is a conical hole cut into a material, designed so that a screw or bolt head sits flush with or below the surface. This simple cut helps screws fit neatly without sticking out, protecting the fastener and the surrounding material.

The purpose of countersinking goes beyond looks. It provides a clean, aesthetic finish, improves the security of fasteners by ensuring they seat properly, and reduces stress on the material around the screw, preventing cracks or damage.

Countersinking is common across many industries like CNC machining, woodworking, metalworking, aerospace, and automotive manufacturing. Each field relies on countersinks to combine strength and style in their projects.

It’s important to note the difference between countersinking and counterboring. While countersinking uses a conical hole to fit tapered screw heads like flat-head screws, counterboring creates a flat-bottomed cavity that allows bolts or screws with cylindrical heads to sit flush. Knowing the right technique ensures the best fit and finish for your project.

Types of Countersinks and Their Applications

When it comes to countersinks, there are a few common types you’ll want to know about depending on your project.

Standard Countersink

• Features a simple conical shape
• Best for flat-head screws
• Commonly used in woodworking and general metalworking

Cross-Hole Countersink

• Has a hole through the center to improve chip clearance
• Ideal for softer materials where debris can cause issues
• Often used in woodworking and plastics

Fluted Countersink

• Features multiple grooves or flutes along the cutting edge
• Great for woodworking and soft materials as it cuts cleanly without tearing
• Provides smoother finishes on surfaces

Zero-Flute Countersink

• Has a smooth, rounded edge without grooves
• Best suited for metal and precision machining tasks
• Offers high accuracy and a better surface finish on hard materials

Here’s a quick comparison table to help you choose:

Picking the right countersink type ensures your screw or bolt fits perfectly while keeping the finish clean and professional. It’s a small detail that goes a long way in every project, from woodworking to CNC machining.

Countersink Tools and Equipment

When it comes to countersinking, having the right tools makes all the difference. Countersink bits come in various types, like single-flute and multi-flute. Single-flute bits are great for softer materials like wood, offering smooth cuts, while multi-flute bits work better on metals, giving you a cleaner, more precise finish.

These countersink tools are compatible with a range of equipment—from manual drills to CNC machines. For anyone working with CNC machining, TOPCNCPRO’s CNC machines really stand out. They optimize countersinking precision by controlling speed, feed rate, and depth more consistently than manual methods. This means fewer errors, better fastener fit, and a smoother final look.

When picking countersink tools, focus on a few key features:

• Material and Coating: High-speed steel (HSS) or carbide bits with coatings like titanium nitride last longer and cut smoother.
• Countersink Angle: Common angles include 82°, 90°, and 100°. Match the angle with your screw head for a perfect fit.
• Flute Design: Choose single, multi, or zero-flute depending on your material and finish needs.

By selecting quality countersink tools and using TOPCNCPRO’s precision CNC machines, you’ll get reliable, clean countersinks every time.

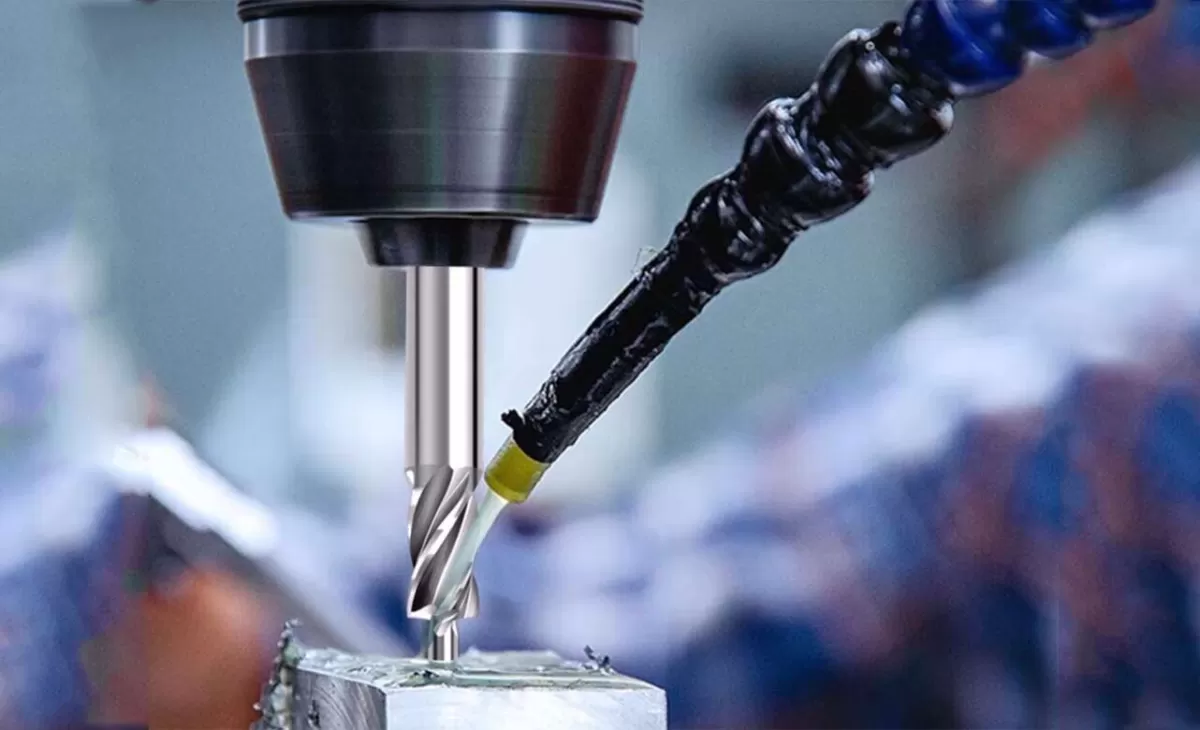

How to Countersink Step-by-Step Process

Here’s a simple step-by-step guide to countersinking that gets the job done right:

Step 1: Select the right countersink tool and angle

Choose the countersink bit that matches your screw head. Most screws use an 82 or 90-degree angle, but check your fastener specs to be sure.

Step 2: Set up your CNC machine or drill

Adjust the speed, depth, and feed rate based on the material you’re working with. For softer materials like wood, slower speeds work well. For metals, use slower feed rates and steady speed to avoid tool chatter.

Step 3: Mark and prepare the material

Clearly mark where the countersink goes. Clean and secure your workpiece whether it’s metal, wood, or plastic. This helps keep everything steady during the cut.

Step 4: Perform the countersinking operation with precision

Start the countersink carefully, using steady pressure. Let the tool do the work—don’t force it. This avoids uneven edges and tool wear.

Step 5: Inspect the countersink for accuracy and finish

Check the hole depth and angle. The screw head should sit flush or slightly below the surface. Smooth out any rough edges if needed.

Tips to avoid common countersink mistakes

• Avoid chatter by ensuring your tool is sharp and your feed rate is steady.
• Use depth stops or guides to prevent going too deep.
• Double-check fastener size before choosing the angle and tool.
• Secure your workpiece tightly to avoid movement during drilling.

Following these steps makes countersinking easier and gives you a clean, professional result every time.

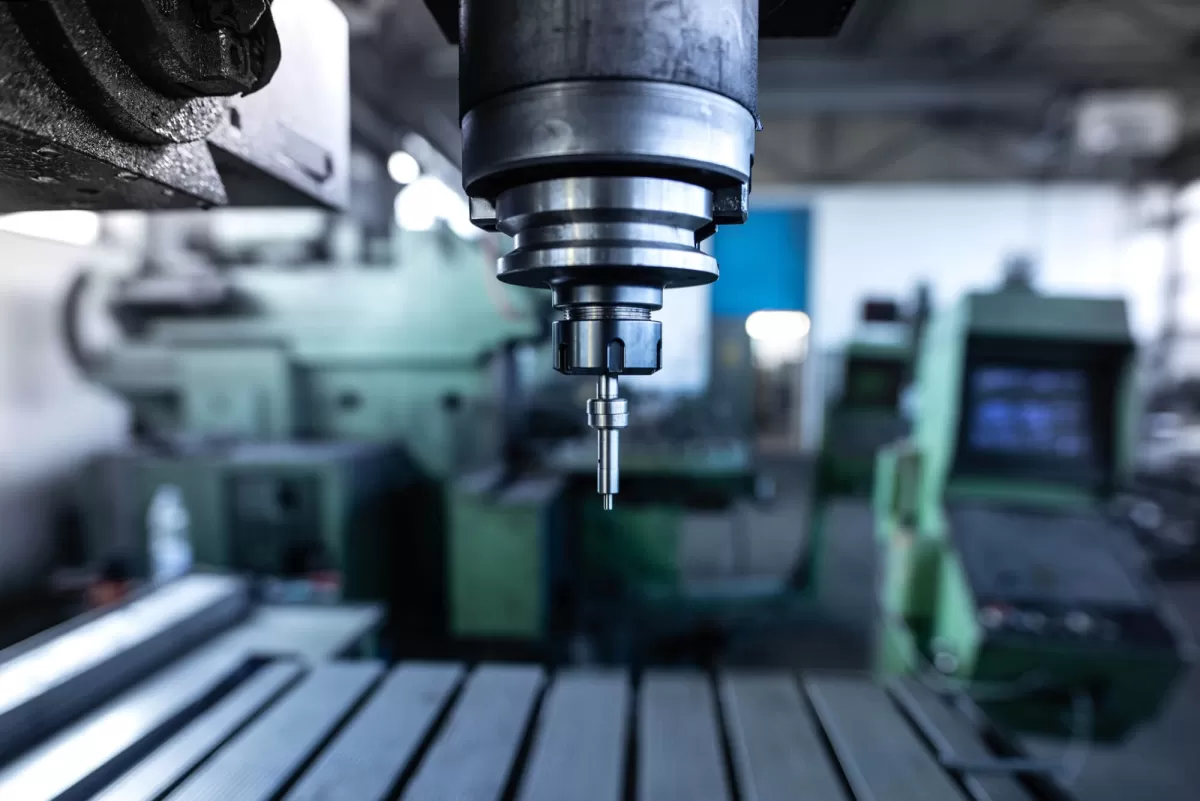

Best Practices for Countersinking in CNC Machining

Getting countersinking right with a CNC machine means paying attention to a few key details. Here’s what I recommend:

Choose the right angle

• Most screws use an 82°, 90°, or 100° countersink angle.
• Match your countersink angle to the screw head for a flush fit. For example, woodworking screws often need 82°, while metal fasteners might use 90° or 100°.

Consider the material

• Metal needs slower speeds and sharper bits to avoid overheating or dulling.
• Wood and composites can handle faster feeds but watch for tear-out or splintering.
• Using the right type of countersink bit for your material is key—zero-flute bits work great for metal, while fluted bits excel in wood.

Optimize CNC settings

• Set spindle speed and feed rate based on the material and bit type.
• Too fast or too slow can cause chatter or rough finishes—fine-tune your settings for smooth cuts.
• Use depth stops or CNC parameters to prevent countersinking too deep.

Maintain tools regularly

• Keep your countersink bits sharp and clean to ensure consistent cuts and longer bit life.
• Replace tools showing wear early to avoid poor finish or damage to your workpieces.

Safety first

• Always secure the workpiece firmly to prevent movement during countersinking.
• Wear safety glasses and hearing protection when operating CNC machines or manual drills.
• Follow manufacturer guidelines on speed and feed to avoid accidents.

Following these best practices helps deliver clean, precise countersinks every time, making your project look professional and fit together perfectly.

Applications of Countersinking in Real-World Projects

Countersinking plays a key role in many industries, especially where a clean, professional finish and strong fastener hold are critical. You’ll find countersinking used in furniture assembly to make screw heads sit flush, preventing snags and improving the look. In aerospace and automotive parts, countersinking helps reduce stress around fasteners, which boosts durability and safety under tough conditions.

TOPCNCPRO puts countersinking to work in precision CNC projects, delivering accurate, clean holes that fit fasteners perfectly every time. This ensures parts meet tight tolerances and look flawless, which is a must in high-stakes manufacturing.

The benefits of countersinking go beyond just looks. It improves durability by reducing material stress, making joints stronger and longer-lasting. Plus, the smooth finish helps prevent corrosion and wear around screws and bolts. This combination of strength, appearance, and function shows why countersinking remains a go-to technique in precision machining and beyond.

Common Challenges and How to Overcome Them

When countersinking, uneven holes or tool chatter can really throw off your project’s finish. This usually happens if your feed rate is too high, or if your countersink tools are dull. To fix this, slow down the feed rate, always use sharp countersink bits, and make sure your workpiece is firmly clamped. Stability is key to clean, consistent countersinks.

Another common problem is getting the depth or angle wrong. If your countersink is too shallow or too deep, the fastener won’t sit properly, impacting both strength and appearance. The best way to avoid this is to use depth stops on your CNC or drill and double-check the fastener specs before you start.

TOPCNCPRO’s CNC solutions tackle these headaches by offering precise controls that keep feed rates steady, maintain accurate depths, and ensure the right angle every time. Their machines help reduce chatter and provide consistent, high-quality countersinking perfect for metalworking, woodworking, and more. With reliable equipment and proper setup, these challenges become much easier to manage in your projects.

FAQs

What is the difference between a countersink and a counterbore

A countersink is a conical hole that lets a screw head sit flush with or below the surface. A counterbore, on the other hand, is a flat-bottomed hole used to fit a bolt or screw head so it sits flush but with a straight edge. Think of countersinks for flat or tapered heads, and counterbores for bolt heads or socket screws.

What angle should I use for countersinking

The most common angles are 82°, 90°, and 100°. The angle you choose depends on your fastener type—82° is typical for most flat-head screws, 90° works well for wood screws, and 100° suits some specialized fasteners. Check your screw specs before picking the angle.

Can I countersink without a CNC machine

Yes, you can. Manual drills and hand tools with countersink bits work fine for smaller jobs or DIY projects. But CNC machines, like those from TOPCNCPRO, deliver much higher precision and repeatability, which is key for professional or large-scale work.

What materials are best for countersink tools

High-speed steel (HSS) and carbide are top choices. HSS is great for general use, especially in woodworking and soft metals. Carbide tools are more durable and better for harder metals and precision machining. Coatings like TiN can also extend tool life.

How does TOPCNCPRO ensure precision in countersinking

TOPCNCPRO machines use advanced CNC controls, optimized feed rates, and high-quality countersink bits to deliver precise angles and depths every time. Their tech also minimizes tool chatter and material stress, ensuring consistent, clean finishes across metal, wood, and composites.
